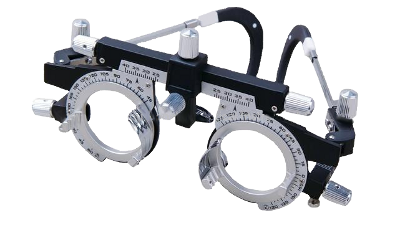

KBMEDIKS DELUXE TRIAL FRAME : PRODUCT # KBM 110TF
| Specifications | |
| Range of PD Adjustments: | |
| PD of both eyes: | 48~80mm |
| Left or Right PD: | 24~40mm |
| Minimum Graduated Value: | 1mm |
| Dividing Disc Axial Graduation: | |
| Left Dividing Disc: | 120°~0°~135° |
| Right Dividing Disc: | 45°~180°~60° |
| Axial graduation increases along the lens’ frame axis counter clockwise with a distance of 50 | |
| Inner Diameter of Lens Frame: | 32.5mm |
| Number of Lens Inserted at once: | 4 pieces |
| Degree of Rotation: | 360° |
| Axis Error: | ≤2.5° |
| Center Error: | ≤0.5mm |
| Displacement Error: | ≤0.3mm |
| Range of Nose Rest Adjustment: | Length: 0~14mm Angle: 0~30° |
| Range of Lens Frame Adjustment: | 98~135mm |
| Maximum Interval Between Frame Legs: | 200mm |
| Weight: | 70g |
| *Taxes and Delivery Cost not included | |
