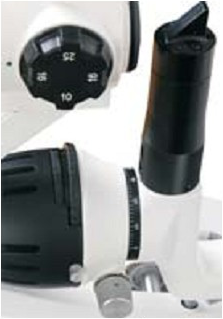

KBMEDIKS SLIT LAMP : PRODUCT # KBM 350-3ZH/350-3ZHLED (ZEISS STYLE)
| Specifications | |
| Microscope Type: | Galilean system |
| Magnification Changer: | Revolving drum (3 steps) |
| Total Magnification: | 10X,16X,25X |
| Ocular Magnification: | 12.5 X |
| Inter Pupillary Distance: | 52mm~78mm |
| Range of Adjusting Eyepieces: | +6 to -6 diopeters |
| Object Image Field 0 in mm: | 22(10X),13.5(16X),8.5(25X) |
| Slit Illumination | |
| Slit Image Width: | 0~14mm continuous (slit becomes a circle at 14mm) |
| Slit Image Length: | 1~14mm continuous |
| Light Source: | 6v/20w halogen incandescent light bulb/3v/3w LED Lamp |
| Slit Image Radial Range: | 0~180degrees |
| Filters: | Heat aborption, redfree(green),cobalt blue |
| Illumination Fields 0 in mm: | 0.5/3.5/8/14/1~14 continuous |
| Illumination Intensity: | ≥50KLX |
| Instrument Base | |
| Operation: | Single handed 3-dimensional operation of the joystick |
| Range of Adjustments: | 90mm(longitudinal) |
| 100mm(lateral) | |
| 30mm(vertical) | |
| 15(fine) | |
| Chin-rest | |
| Fixation: | Red led |
| Vertical Adjustment: | 80mm |
| Power Supply | |
| Input Voltage: | 220v/110v ±10% |
| Input Frequency: | 50Hz/60Hz |
| Output Power: | 30VA(max) |
| Output Voltage: | Light source 6V continuous, fixation 3V |
| Packaging | |
| Carton: | 740mm X 470mm X 560mm |
| Gross Weight: | 24Kg |
| Net Weight: | 21Kg |
| *Taxes and Delivery Cost not included | |
