KBMEDIKS PHOROPTER : PRODUCT # KBM 1165B

Our phoropters allow you to test patients’ vision with comfort and accuracy.

Note: A ̶ The cylinder of KBM1165B can be made minus or plus according to your requirement.

Note: B ̶ Power step of KBM1165B can be made 25°or 15°according to your requirement.

KBMEDIKS PHOROPTER : PRODUCT # KBM 1165B

Specification
Sphere: Range: -19.00 ~ +16.75D
Cylinder: Range: -6.00 ~ 0.00D (-8.00 ~ 0.00 diopters with additional lens of -2.00 diopters)
Cylinder Axis: 0 ~ 180, 5° steps
Cross Cylinder: ±25D
Rotating Prism: 0△ ~ 20△, 1△ steps
Auxilary Lens Dial: Open Aperture (two positions)
Retinoscopic lens, +1.50D
Polarizing lens 45° left eye
135° right eye
WMV or RMV Maddox rod, vertical
White left eye
Red right eye
WMH or RMH Maddox rod, horizontal
White left eye
Red right eye
Red lens
+.12D sphere
Pin hole
10△ or 6△ – 10△ base-in left eye
6△ base-up right eye
(Dissociating prisms)
±0.50 fixed cross cylinder
Occluder
Pupil Distance: 48~75mm, 1mm steps

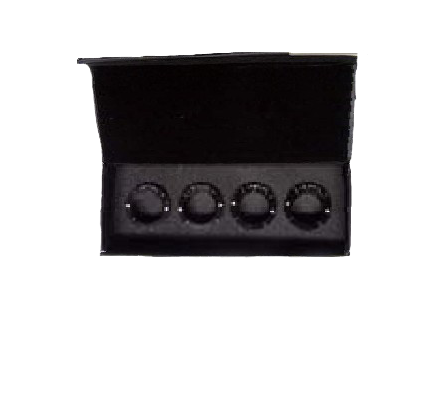

Standard Accessory Lenses: Two 12D and -2.00 cylinder lenses. Two plano lenses for sealing front opening

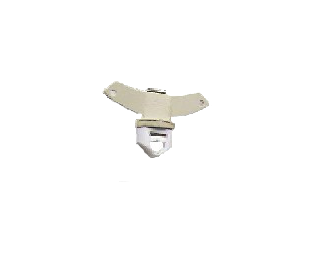

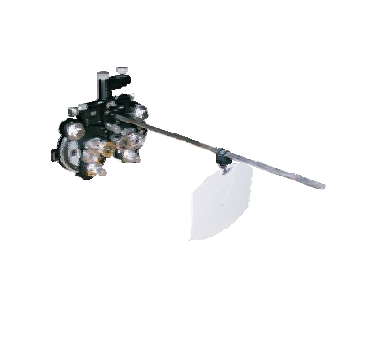

Standard Accessories: 1 near point card with holder and reading rod, dust cover, face shield, accessory case for lenses
Dimensions: 318 x 293 x 96mm
Net weight: 5kg
*Taxes and Delivery Cost not included

For a competitive quote, volume discounts and full office set up

please call 1-866-338-2233 or 604-926-5015
